| Product Catalog   -> Robot Wire Feeders

Performance：

  1. PML Invention Patent Motors or classic gearbox motors-------Quick response, good performance
  2. 4-Roll Bracket--------Double adjustable handle, strong feeding
  3. Compact and good looking appearance

Specifications：

 Options：

Motor

 WNL Motor or Gearbox motor
Bracket 4-Roll Wire Feed Unit Motor Voltage 18.3V，24V，Other
Feed Rolls 40mm, 2 Grooves Optical Encoder 60cpr，120cpr，A B Channel
Feed Speed 1.8~22m/min Wire Diameter 0.8，0.9，1.0，1.2，1.6mm
Wire Diameter 0.8~1.6mm Torch Interface Euro,Panasonic,OTC
Weight

5 kg, 6.2 kg,7.4 kg

Welding Current 250A，350A，500A


With WNL Motor
With Gearbox Motor
With WNL Motor

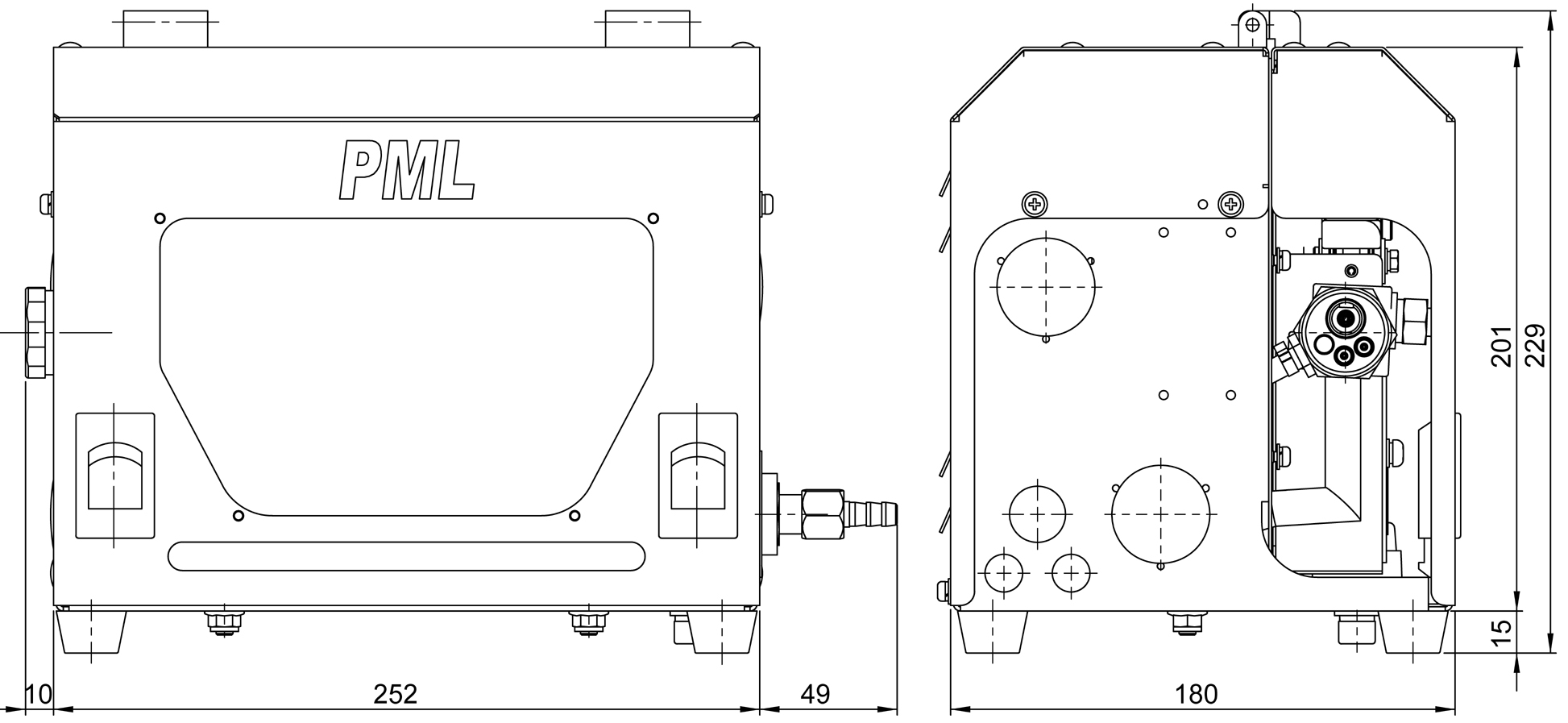

Outline drawing, all dimensions in mm：
